Low-loss, fully sealed, built for decades of service
Good economic performance: no-load current drops 60–80% on average and no-load loss is reduced 25–35% on average.
Long service life: the fully sealed oil tank (bolted or welded tank edge) keeps the pressurized oil out of contact with air. Improved tank-seal design and process give proven, high operational reliability.
Small footprint: a corrugated-plate radiator expands and contracts with oil temperature, replacing the oil conservator, for a compact unit with a clean appearance.
Oil-Immersed Distribution Transformer
10 kV and 35 kV classes, off-circuit or on-load voltage regulation, energy-efficiency rated.
| 10 kV class | 30–2500 kVA · HV 10 kV (±2×2.5% tap) · LV 0.4 kV · Dyn11 / Yyn0 · impedance 4.0–4.5% |
|---|---|
| 10 kV on-load (OLTC) | 200–2500 kVA · on-load tap ±4×2.5% |
| 35 kV class | 2500–31500 kVA · LV 3.15 / 6.3 / 10.5 kV · Yd11 / YNd11 · impedance 6.5–8% |
| Standards | IEC / GB; energy-efficiency rated |
Indicative ranges from the manufacturer's selection guide. Final ratings, taps, impedance and accessories are configured to your project specification.

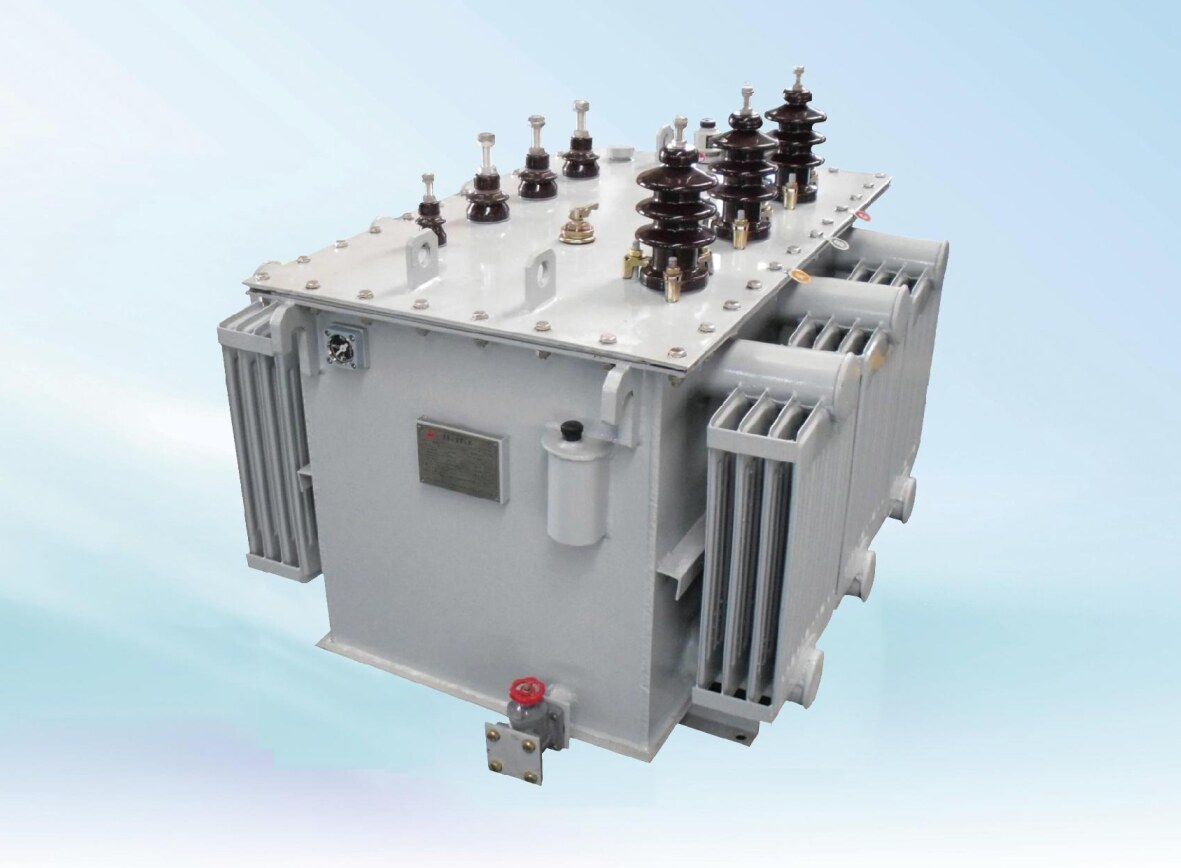

Sealed Amorphous-Alloy Transformer
A fully oil-filled, sealed transformer built on an amorphous-alloy core (iron, nickel, cobalt, boron, carbon) — an isotropic soft-magnetic material. Model series S(B)H15(21–25)-M.
| Low loss | No-load loss reduced 60–80% vs silicon steel, cutting grid standby energy use |
|---|---|
| High energy efficiency | Lower losses reduce generation demand and CO₂ emissions |
| Temperature stability | Stable magnetic properties across a wide temperature range |
Engineered to last in the field
Low loss & high efficiency
No-load loss down 25–35%, and up to 60–80% with an amorphous-alloy core.
Fully sealed, long life
Pressurized oil never contacts air, extending service life and reliability.
Corrugated-tank footprint
Corrugated radiator replaces the conservator for a compact, clean unit.
Amorphous-alloy option
Isotropic soft-magnetic core for the lowest standby losses.
Energy-saving 3-D core
Triangular wound-core option balances the magnetic circuit and cuts noise.
Low noise
Balanced flux paths reduce operating noise for sensitive sites.
Where these transformers fit
You may also need
Need distribution units for a US or Canadian project?
Send your kVA, voltages, taps and accessory schedule — we'll return an engineered quote with drawings and a DOE/CSA efficiency statement.
