Safe at the load center, maintenance-free for life
Safe and clean: flame-retardant, fireproof and pollution-free, dry-type transformers can be installed directly at the load center. They are maintenance-free, easy to install and have a low overall operating cost.
Excellent moisture resistance lets them operate at 100% humidity and be energized after shutdown without pre-drying. Low loss, low partial discharge, low noise and strong heat dissipation allow up to 150% rated load with forced-air cooling — and a complete temperature-protection control system keeps operation safe. Field-operation reliability is at the international level.
Epoxy-Resin Cast (SCB 12–18)
Voltage classes 10 / 20 / 35 kV; off-circuit or on-load voltage regulation, including new-energy (PV/wind/storage) generation-side variants.
| 35 kV power class | 2000–20000 kVA · HV 35 / 37 / 38.5 kV · impedance 7.0–9.5% · Dyn11 / Yyn0 / Yn11 |
|---|---|
| 20 kV distribution | 30–2500 kVA · LV 0.4 kV · impedance ~6% |
| 10 kV distribution | 30–2500 kVA · LV 0.4 kV · impedance ~4–6% |
| Insulation / temperature class | F or H (losses rated at 100°C(F) / 120°C(F) / 145°C(H)) |
Indicative ranges from the manufacturer's selection guide. Final ratings, taps, impedance and accessories are configured to your project specification.

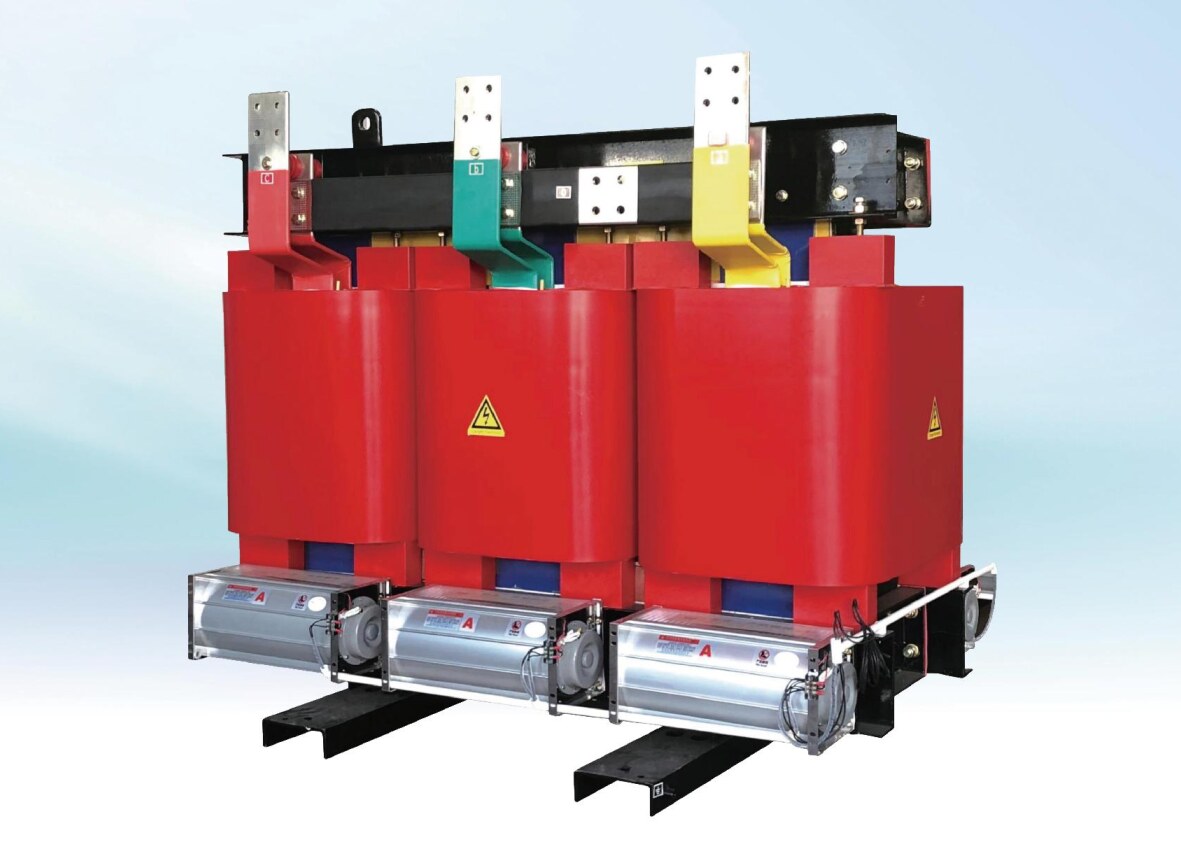

Amorphous-Alloy Dry (SC(B)H15 17–19)
An energy-saving dry-type transformer with an amorphous-alloy core — low no-load loss, oil-free, flame-retardant/self-extinguishing, moisture- and crack-resistant, and maintenance-free. The preferred choice for data centers and communication base stations.
| 35 kV class | 1000–6300 kVA (three-phase double-winding) |
|---|---|
| 10 kV class | 630–2500 kVA (three-phase double-winding) |
| Typical use | High-rises, commercial centers, subways, airports, stations, industrial & mining, power plants |
Engineered to last in the field
Flame-retardant & fireproof
Pollution-free construction installs directly at the load center.
Maintenance-free
Easy installation and a low overall operating cost.
100% humidity operation
Energize after shutdown without pre-drying — excellent moisture resistance.
150% overload (forced air)
Strong heat dissipation supports peak load with forced-air cooling.
Complete temperature protection
Integrated control system safeguards safe operation.
Amorphous-alloy option
Lowest no-load loss for data centers and communication sites.
Where these transformers fit
You may also need
Need dry-type units for a US or Canadian project?
Send your kVA, voltages, taps and accessory schedule — we'll return an engineered quote with drawings and a DOE/CSA efficiency statement.
